- 1X ON/OFF
- Please check the dimensions of the Frame; if you will use in a wall set. Frames are in Accessories category.
- All buttons ar also a Scene controller!
- Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
Gang: 1-gang/2-gang/3-gang
Casing material: PC VO
Working temperature: -10°C~40°C
Voltage: 100-240V AC 50/60HZ
Output: 100-240V AC 50/60HZ
MCU: ESP32 - Current output:
M5-1C: 10A
M5-2C: 10A (5A/Gang)
M5-3C: 6A (2A/Gang) - Max. power:
M5-1C: 2200W
M5-2C: 2200W (1100/Gang)
M5-3C: 1320W (440W/Gang) - Certification:
86: CE/UKCA/COC/SRRC
80: CE/UKCA - Apple: Apple HomeKit
- Google: Google Home
- Apple Voice Control: Siri
- Google Voice Control: Google Assistant

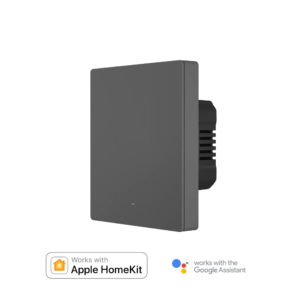

- Smart WiFi Switch
- Support: IOS Android
Everything at once!
Apple HomeKitGoogle HomeWeb UI 3.Party WebSocket protocol integration,Local Http server. All in one with a single iot device – no Gateway / Hub required. Make automations with HomeKit scenes and google home routines. You don’t need iPad/Apple TV/HomePod in your home for remote control because we have Web UI – everything Synchronized
Features
Power of ESP32 with our special firmware
Super Easy Setup
You will easily setup with single page, user friendly form.
FAQ
- Q:How to setup?
When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;
-Select your device type
-Enter gmail address
-Select your router and enter password
-Save.
You can change other device settings by entering ip address of your device like:
Auto Turn Off Feature – Set relay auto off from 1 second to 24 hours .
- Q:Internet Required?
You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.
Google Home and Web UI needs internet connection.
- Q:Updating device firmware?
If there is a firmware update, you can upload firmware file, check support page.
