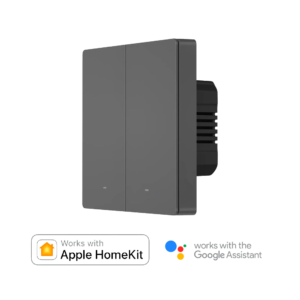

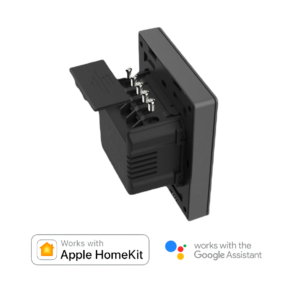

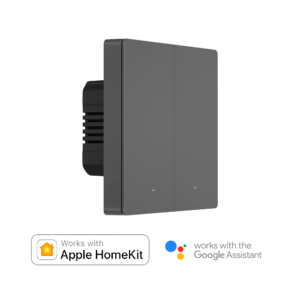

Switchman M5 x2: Smart Roller Shutter and On-Off Wall Switch for Apple HomeKit and Google Home

• 2 Modes: ON/OFF or Roller Shutter – Curtain – Motor mode
• Please check the dimensions of the Frame; if you will use in a  wall set. Frames are in Accessories category.
• All buttons are also a Scene controller with On Off Mode!
• Please check the dimensions of the Frame; if you will use in a  wall set. Frames are in Accessories category.
• Wi-Fi: IEEE 802.11 b/g/n 2.4GHz Gang: 1-gang/2-gang/3-gang Casing material: PC VO Working temperature: -10°C~40°C Voltage: 100-240V AC 50/60HZ Output: 100-240V AC 50/60HZ MCU: ESP32
• Current output: M5-1C: 10A M5-2C: 10A (5A/Gang) M5-3C: 6A (2A/Gang)
• Max. power: M5-1C: 2200W M5-2C: 2200W (1100/Gang) M5-3C: 1320W (440W/Gang)
• Certification: 86: CE/UKCA/COC/SRRC 80: CE/UKCA
• Apple: Apple HomeKit
• Google: Google Home
• Apple Voice Control: Siri
• Google Voice Control: Google Assistant
• Smart WiFi Switch
• Support: IOS Android

  Everything at once!   Apple HomeKitGoogle HomeWeb UI 3.Party WebSocket protocol integration,Local Http server. All in one with a single iot device – no Gateway / Hub required. Make automations with HomeKit scenes and google home routines. You don’t need iPad/Apple TV/HomePod in your home for remote control because we have Web UI – everything Synchronized   Features Power of ESP32 with our special firmware Super Easy Setup You will easily setup with single page, user friendly form. FAQ

• Q:How to setup?

When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;   -Select your device type -Enter gmail address -Select your router and enter password -Save.   You can change other device settings by entering ip address of your device like: Auto Turn Off Feature – Set relay auto off from 1 second to 24 hours .

• Q:Internet Required?

You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.   Google Home and Web UI needs internet connection.

• Q:Updating device firmware?

If there is a firmware update, you can upload firmware file, check support page.
