SPECIFICATIONS

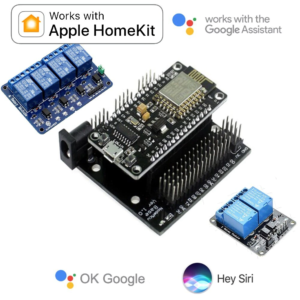

Roller Shutter For Apple HomeKit Curtain Motor Smart Home WiFi Switch 4 Relay Siri Google Assistant Voice Control Automation Iot
2 Modes:
1-Setup as a motor controller
2-Setup as an on-off controller
Example systems:
Control 1 roller shutter : Get 1 device with 2 relays.
Control 2 roller shutter : Get 2 device with 2 relays.
Control 2 on-off lights : Get 1 device with 2 relays.
Control 4 on-off lights : Get 1 device with 4 relays.
Control 1 roller shutter and 2 on-off lights: Get 1 device with 2 relays for roller shutter and Get 1 device with 2 relays for on-off.
Control 1 roller shutter and 4 on-off lights: Get 1 device with 2 relays for roller shutter and Get 1 device with 4 relays for on-off.
You can control only 1 roller shutter with 2 relays or 4 relays.
DIY Advantages
‣ Low power DC input
‣ Dry Contact Relays 90-250AC / 30VDC
‣ simple
‣ Set Momementry or Toggle Switch as you need
‣ Play & Enjoy

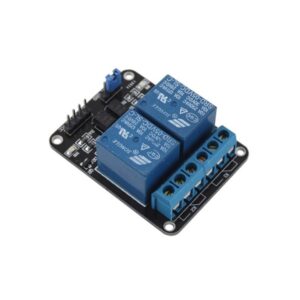

Set 2 Channel relays as On-Off Switches or use it for Motorized devices like Roller Shutter, Blind, Garage Door…

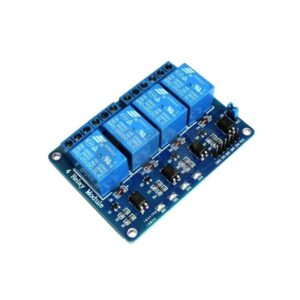

Set 4 Channel relays for On-Off Switches
2 / 4 Button Output
‣ Power with your 5 DC Micro Usb or 7-15 DC Adaptor

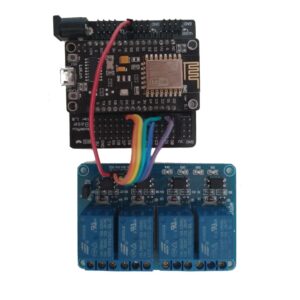

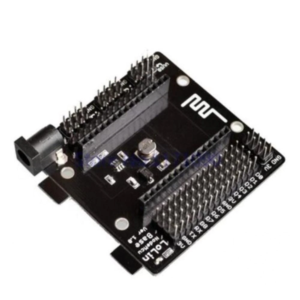

‣ Pin Wires, ESP8266 board, ESP8266 Board Base, Relay module included
Everything at once!
Apple HomeKitGoogle HomeWeb UI3.Party Http protocol integration,Local Http server.All in one with a single iot device – no Gateway / Hub required. Make automations with homekit scenes and google home routines. You don’t need iPad/Apple TV/HomePod in your home for remote control becuase we have Web UI – everything Synchronized
Features

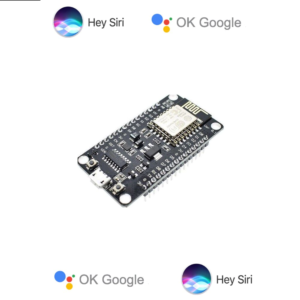

Power of Esp8266 with our special firmware
Super Easy Setup
You will easily setup with single page, user firendly form.
FAQ
- Q:How to setup?
When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;
-Select your device type
-Select switch type (momentry/toogle) and required gmail account.
-You can set static ip (optional) for the device but you must know your gateway ip & subnet mask.
-Enter your router name and password if it doesn’t in the WiFi list “refresh network” or enter manually.
-Save.
You can change other device settings by entering ip address of your device like:
Auto Turn Off Feature – Set relay 1 auto off from 1 second to 64.800 secondsTurn Back Feature – Turn to last position (on or off) when power failure or restarts.
- Q:Internet Required?
You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.
Google Home and Web UI needs internet connection.
- Q:Updating device firmware?
If there is a firmware update, you will see in local http server page. Update will be done OTA – over the air.
- Q:3th Party Apps – HTTP Server Commands
You can control HomeHome.App with 3th party apps. Your email adress must be gmail so don’t add @gmail.com
Turn on 1. relay: ‘https://ip.address/1/on?myEmail’
Turn off 1. relay: ‘https://ip.address/1/off?myEmail’
All state replies are in array for example: [0,1,2,2] 0 –> off , 1 –> on , 2 –> none
Get all relay states: ‘https://ip.address/all?myEmail’ 1-2-4 relay devices are using the same firmware so we push all together.
You can easly understand this is a 2 relay device. First relay is off, second relay is on in this example.
