SPECIFICATIONS

Work With: HomeKit

Wireless Standard: 2.4GHZ, 802.11 b/g/n

WiFi: EEE 802.11 b/g/n 2.4GHZ

Voice Control: Siri

Virtual Thermostat: Yes

USB Cable for Sensor: 2 Meters

Switch Dimensions: 42.6X42.6X20mm

Supports: IOS Android Google Home

Smart Home: Smart WiFi Switch

Relay Weight: 45gr

Output: AC 100-240V 50/60Hz 10A Max

Max current: 10A

Max Wattage: 2200W

Material: PC V0

Input: AC 100-240V 50/60Hz 10A Max

IP Rating: IP-67

Google Voice Control: Google Assistant

Function: 1 Gang WiFi Switch

Enclosure Material: Fire-retardant PC V0

Case Weight: 58gr

Case Dimensions: 80x50x20 mm

Case Color: Light Gray

2.Optional Sensor: Temperature and Humidity

2 Way: 2 Way 1 gang switch

1.Optional Sensor: Waterproof Temperature

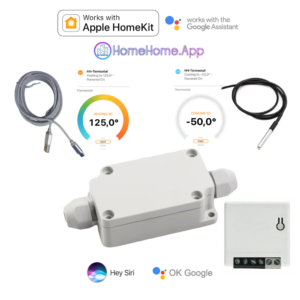

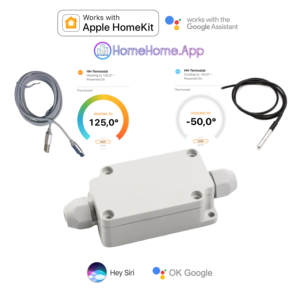

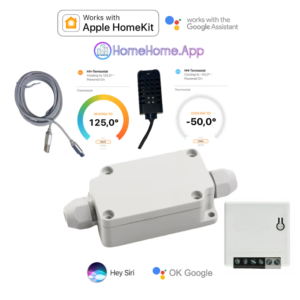

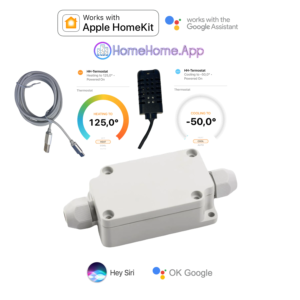

Super Smart Temperature/Humidity Sensor With Virtual Thermostat Switch

• Outdoor IP67 Temperature / Humidity Sensor Box Dimensions : 80x50x20 mm
• High Temperature Range : -50C to +125C

• Actuator for your heater/cooler : Sonof Mini without its own box; It fits perfectly in the IP67 Box.

• Use sensor and mini relay together for complete thermostat system.
• Sensor box shown as thermostat which have an additional accessory : Virtual Switch
• Add automation to HomeKit: When Virtual switch is ON, turn on Mini Switch

• Sensor box have 2 Meters USB cable for power supply, works with 5v DC.

• Sensor box with waterproof temperature option have 80-100CM sensor cable length
• Sensor box with temperature/humidity option have 20-25CM sensor cable length

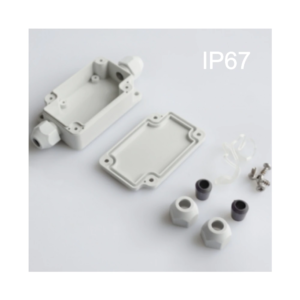

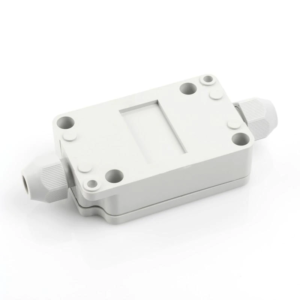

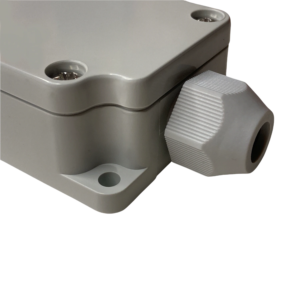

• IP67 Box Dimensions : 80x50x20 mm 2x Cable Gland [PG9]

• You can install IP67 Case to a wall with its ears.
