SPECIFICATIONS

Works With: HomeKit & Google Home Wireless Standard: 802.11 b/g/n Voltage: 90-250v AC(50/60Hz) Sensor Weight: 26g Sensor Type: Waterproof temperature sensor Sensor Type: Stainless steel temperature probe Sensor Temp Measuring: -55C to +125C Sensor Probe: Stainless steel temperature probe Operating Temperature: 0C-40C(32F-104F) Model Number: TH20 R3 Max current: Max 20A Max Wattage: 4400W Humidity: 5%-90%RH, Non-condensing Gang: 1 Enclosure Material: Fire-retardant ABS V0 Device Weight: 145g Certification: FCC

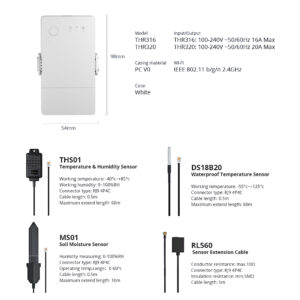

About Sensors

DS18B20 Waterproof Temperature sensor  – Good for boiler

Si7021 Temperature and Humidity sensor – Good for room

MS01 Soil Moisture capacitive sensor – Good for plants

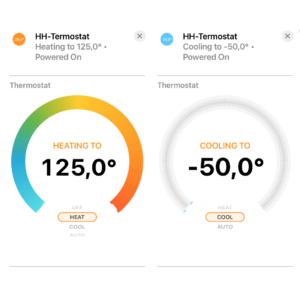

High Temperature Range -50 +125 Now you can use thermostat with very low and very high temperatures.   Setup https://www.homehome.app/support About Sensor DS18B20 Temperature sensor can work with this device. Everything at once!   Apple HomeKitGoogle HomeWeb UI3.Party Http protocol integration,Local Http server.All in one with a single iot device – no Gateway / Hub required. Make automations with homekit scenes and google home routines. You don’t need iPad/Apple TV/HomePod in your home for remote control becuase we have Web UI – everything Synchronized   Features Power of Esp8266 with our special firmware Super Easy Setup You will easily setup with single page, user firendly form. FAQ

• Q:How to setup?

When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;   -Select your device type -Select switch type (momentry/toogle) and required gmail account. -You can set static ip (optional) for the device but you must know your gateway ip & subnet mask. -Enter your router name and password if it doesn’t in the WiFi list “refresh network” or enter manually. -Save.   You can change other device settings by entering ip address of your device like: Auto Turn Off Feature – Set relay 1 auto off from 1 second to 64.800 secondsTurn Back Feature – Turn to last position (on or off) when power failure or restarts.

• Q:Internet Required?

You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.   Google Home and Web UI needs internet connection.

• Q:Updating device firmware?

If there is a firmware update, you will see in local http server page. Update will be done OTA – over the air.
