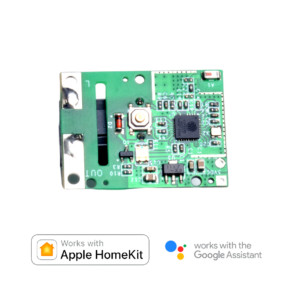

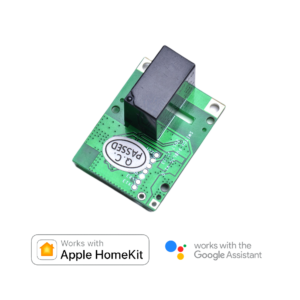

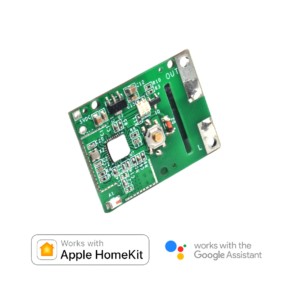

Nano DIY Dry Contact On Off Relay For Apple HomeKit Google Home

• Nano size 34.5*25*19mm
• Power Supply 5V DC

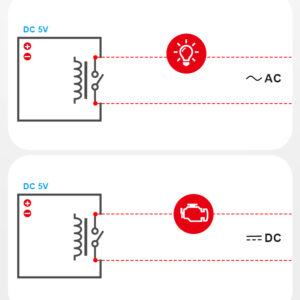

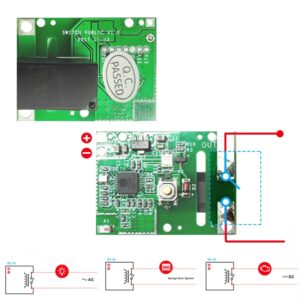

• Output Dry contact (DC/AC)
• Max Current 10 Ampere
• Humidity  5%-90%RH, Non-condensing
• Operating Temperature 0°C-40°C(32°F-104°F)
• Wi-Fi IEEE 802.11 b/g/n 2.4GHz
• Works with Apple HomeKit
• Works with Google Home
• Apple Voice Control: Siri
• Google Voice Control: Google Assistant
• Smart WiFi Switch
• Support: IOS Android

Everything at once!

Apple HomeKitGoogle HomeWeb UI3.Party Http protocol integration,Local Http server.All in one with a single iot device – no Gateway / Hub required. Make automations with homekit scenes and google home routines. You don’t need iPad/Apple TV/HomePod in your home for remote control becuase we have Web UI – everything Synchronized

Features

Power of Esp8266 with our special firmware

Super Easy Setup

You will easily setup with single page, user firendly form.

FAQ

• Q:How to setup?

When you plug the device it will broadcast WiFi network : “HomeHome-xxxxxx” Password is “homehome” Join the network, make setup in captive portal;

-Select your device type

-Enter Gmail address

-You can set static ip (optional) for the device but you must know your gateway ip & subnet mask.

-Enter your router name and password if it doesn’t in the WiFi list “refresh network” or enter manually.

-Save.

You can change other device settings by entering ip address of your device like:

Auto Turn Off Feature – Set relay 1 auto off from 1 second to 64.800 seconds. Turn Back Feature – Turn to last position (on or off) when power failure or restarts.

• Q:Internet Required?

You can use Apple HomeKit and local http server (write your device ip in to a web browser) without internet.

Google Home and Web UI needs internet connection.

• Q:Updating device firmware?

If there is a firmware update, you will see in local http server page. Update will be done OTA – over the air.

Setup guide: https://www.homehome.app/support
